Technical information concerning connections
LUX ELEMENTS®- CONCEPT
The method of construction for the connection of the individual components ensures particularly high stability:
- Particularly stable panel connection thanks to tongue and groove principle
- Self-levelling panel connection thanks to V-groove
- Fast and simple assembly thanks to optimised fitting accuracy of the elements
- High production accuracy thanks to the use of state-of-the-art cutting technologies
- Stable fastening option for the door profile thanks to FIX-PRO-MAK over the entire panel width
- Flexible wall height: panel length up to 2500 mm, higher walls possible by using wall extension

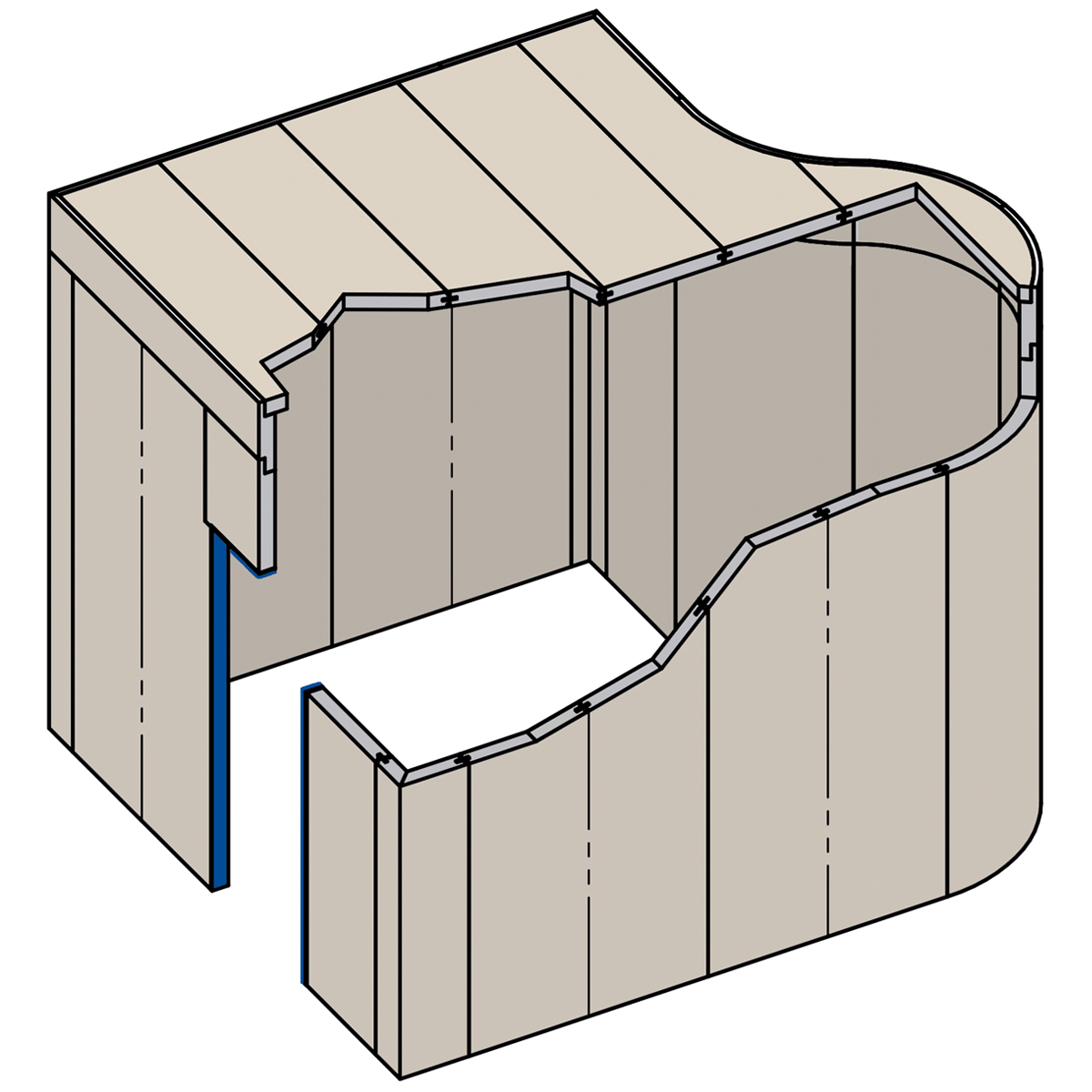

Flexible wall height: higher walls possible by using wall extension
Wall extension and roof support with step seam
Panel connection consisting of tongue and V-groove
FIX-PRO-MAK 80 mm, circumferential on 3 sides of the door opening
Corners glued in the factory
Panel connection consisting of tongue and V-groove
