The floor channel drain is already integrated in the model with linear drainage. The reversible channel cover offers two design possibilities: One side has a brushed stainless steel surface, the other can be tiled to match the entire washstand. By simply turning, the desired side faces upwards.
A clickfit drain adaptor for the connection of the floor drain is included with the product set.
Optional: LED light rope warm white, for the indirect lighting of the long side underneath the washstand, protection class IP 67, 24 V, 5 m supply cable, incl. power supply unit

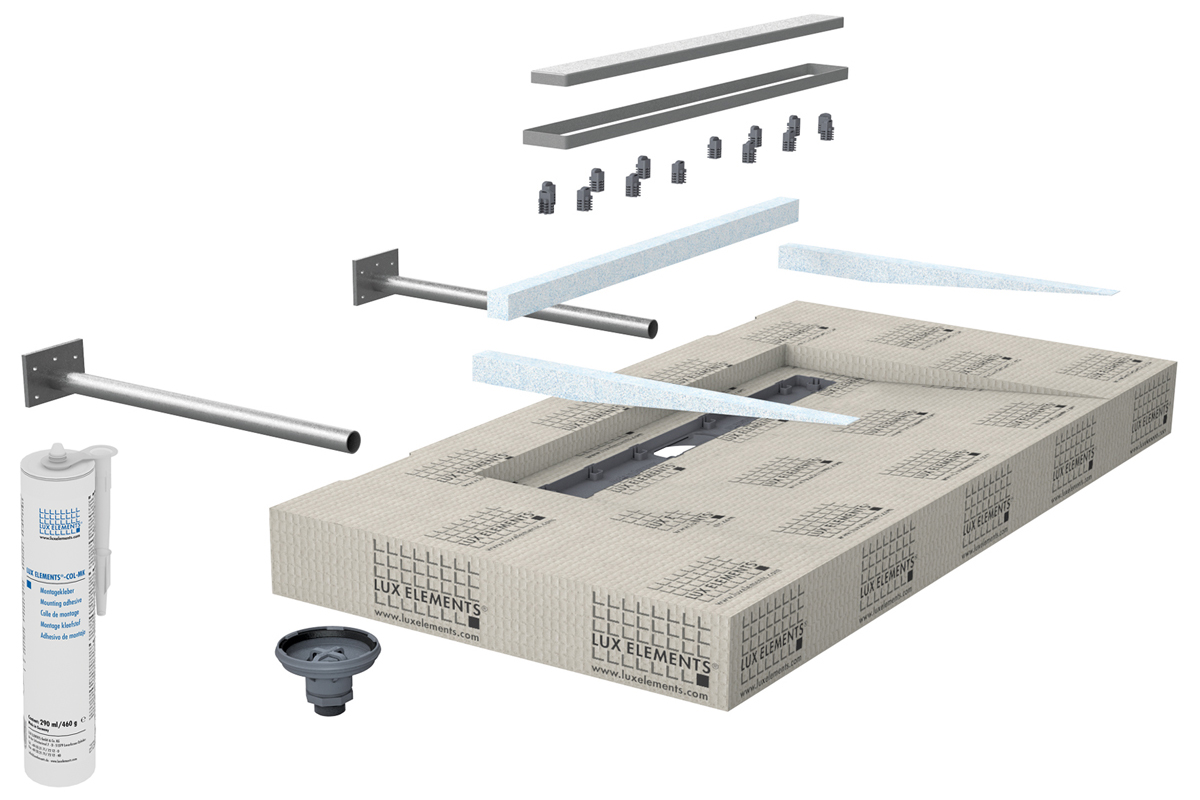

The system components
Cover rail – Brushed stainless steel, tileable on the rear side
Tiling aid – Brushed stainless steel, for clean tiling
Height adapter – Separately provided, can be cut as required
Fillers – for flush tiling up to the edge of the channel
Stainless steel brackets – 2 pieces – 450 mm long
Channel drain with click system – For the firm connection with separate drain support
Washstand panel – Hard foam support material, with sloping recess
Drain support – Clip-on technique, for drain pipe 1 ¼"
Mounting adhesive – 1 cartouche COL-MK, 290 ml
Practical examples and instructions
