In buildings concrete floors are not always found in bathrooms. Due to national circumstances or for ecological planning reasons, it may occur that a wooden planking on a bearing structure serves as substrate for a shower base.

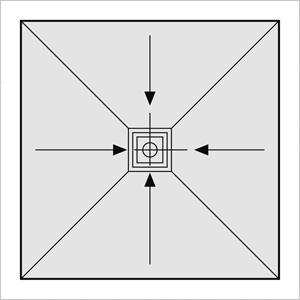

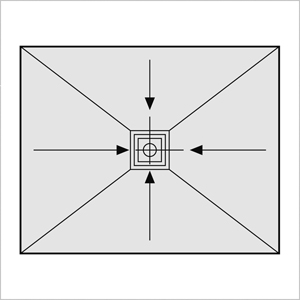

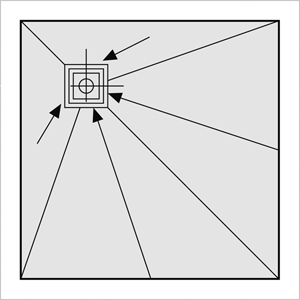

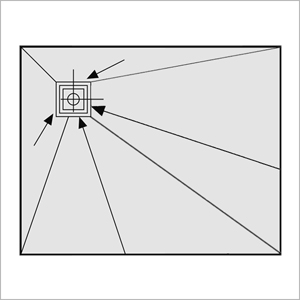

For this application purpose, LUX ELEMENTS offers the models TUB-HEQ/-HMQ (square, drain in the corner or in the centre) and TUB-HER/-HMR (rectangular, drain in the corner or in the centre)and TUB-H BOL (for the substitution of bath tubs). All models have a factorysealed top surface and are equipped with a sealed-in floor drain frame.
With an installation height of 15/30 mm and a build-in gradient, these shower bases are particularly flat and can be easily integrated into existing wooden floors. A special reinforcement is attached to the underside of the shower bases for stability reasons.
The drain technology, which is easy to mount due to a click system, can be easily installed in the cavity between two load-bearing planks. We will be pleased to compile the appropriate mounting accessories for you. Please contact us!

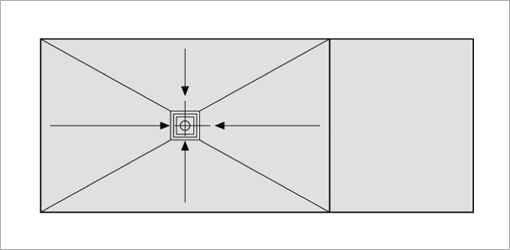

TUB-H BOL
