Flush with the floor hard foam shower base elements for linear drainage, square or rectangular, with integrated and sealed floor channel drain 70 x 650 mm, 70 x 750 mm or 70 x 850 mm.
The cover rail and a loose frame as a tiling aid are made of brushed stainless steel. Incl. odour trap with a sealing water height of 22 mm.
Gradient variants
There are two gradient options to choose from: The 4-sided gradient runs from the outer edges to the drain, so no special cutting of the tiles above the shower base is necessary. As an alternative, the single-sided gradient to the drain can be chosen.
Substrate elements
Matching substrate elements with a height of 55 mm are offered in addition to the shower bases.
Design cover rail
The system offers two design options due to a reversible channel cover rail. One side has a brushed stainless steel surface, the other can be tiled to match the entire shower base. By simply turning, the desired side faces upwards.
Drain system with high flow rate.
The floor drain support is firmly fixed to the channel by means of a strong clip technique. This ensures a high degree of reliability with regard to leak tightness.
Separately provided adapters that can be cut as required enable height adjustability of the channel for surface covering thicknesses from 5 to 17 mm.

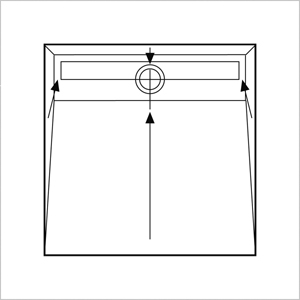

square / 4-sided gradient

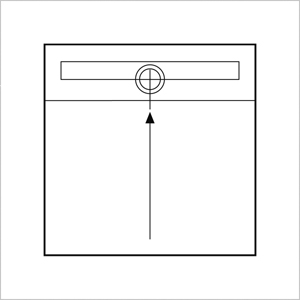

square / single sided gradient

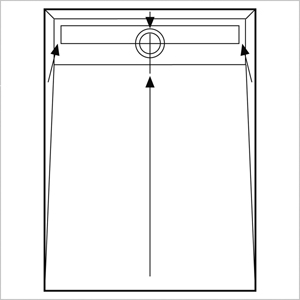

rectangular / 4-sided gradient

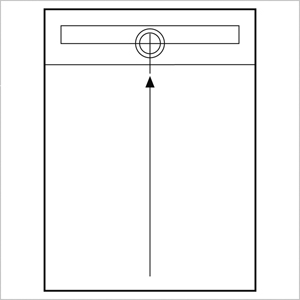

rectangular / single sided gradient
