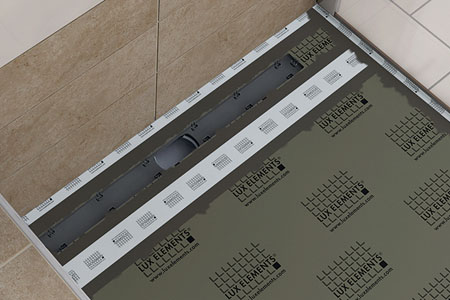

Floor channel drain (70 x 650 mm or 70 x 750 mm or 70 x 850 mm) with integrated horizontal drain support, with odour trap, integrated in extra flat hard foam support element, including sealing sleeve.
This product is particularly suitable where no large installation height (Extra-flat height RT: 67 mm) is possible, e.g. when renovating old buildings.
Design floor channel drain TUB-LINE COMBI RT

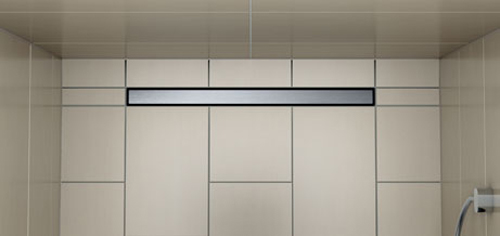

The cover rail and a loose frame as a tiling aid are made of brushed stainless steel. The cover rail can be tiled on the back. By simply turning, the desired side faces upwards. Height adjustability for optimal adaptation to a covering thickness of 5–17 mm possible.
TUB-LINE COMBI RT 900 (650)
Dimensions: 200 x 900 x 67 mm
Channel: 70 x 650 mm
TUB-LINE COMBI RT 900 (750)
Dimensions: 200 x 900 x 67 mm
Channel: 70 x 750 mm
TUB-LINE COMBI RT 1200 (850)
Dimensions: 200 x 1200 x 67 mm
Channel: 70 x 850 mm
Optionally available are matching sealed gradient elements for all TUB-LINE COMBI RT. They can be attached to one or both sides. If necessary, they can be cut to size on the higher side to adapt them e.g. to a niche.
TUB-LINE COMBI GK R1 1200/900
Dimensions: 1200 x 900 x 30/45 mm
TUB-LINE COMBI GK Q1 1200
Dimensions: 1200 x 1200 x 30/45 mm
Simple cutting to length on the higher side for adaptation to the room situation.
LUX ELEMENTS®- TUB-LINE COMBI V RT
LUX ELEMENTS®- TUB-LINE COMBI
LUX ELEMENTS®-TUB-COMBI
