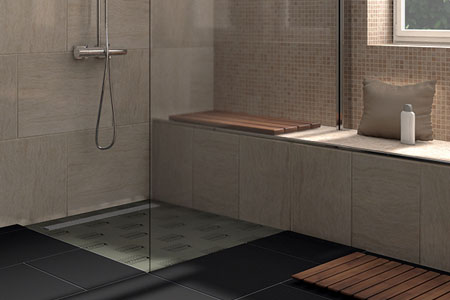

The TUB-LINE COMBI models combine a shower base element with an integrated and sealed floor channel drain, including integrated horizontal floor drain support with odour trap.
The substrate element is therefore omitted and the shower base with its 80 mm construction height (67 mm construction height for the floor channel drain) is particularly flat. In addition, the TUB-LINE COMBI shower bases in conjunction with the horizontal floor drain support DN 50 have a standard-compliant drainage capacity of 0,52 l/s.
TUB-LINE COMBI Q.../R... Hard foam shower base element with integrated and sealed floor channel drain, with 4-sided gradient or single-sided gradient, including loose sealing sleeve 200 x 800 mm.
Design channel drain
The cover rail and a tiling aid are made of brushed stainless steel. The cover rail can be tiled on the back. By simply turning, the desired side faces upwards.
Height adjustability for optimal adaptation to a covering thickness of 5–17 mm possible.
LUX ELEMENTS®-TUB-LINE COMBI RT
LUX ELEMENTS®-TUB-LINE COMBI V RT
LUX ELEMENTS®-TUB-COMBI
